Features

Variable Hoisting Speed With Inverter

• Mitsubishi original inverter specially developed for hoist.
• Overload prevention function, Electronic limit switches, Light load high speed operation function, Operation history function are standard.
• Smooth inching operation.

Specially Designed For Box Type Girder

Equipped with flat wheels and trolley for box type girder as standard.

Useful Options

Guide roller and Traversing limit switch as options.

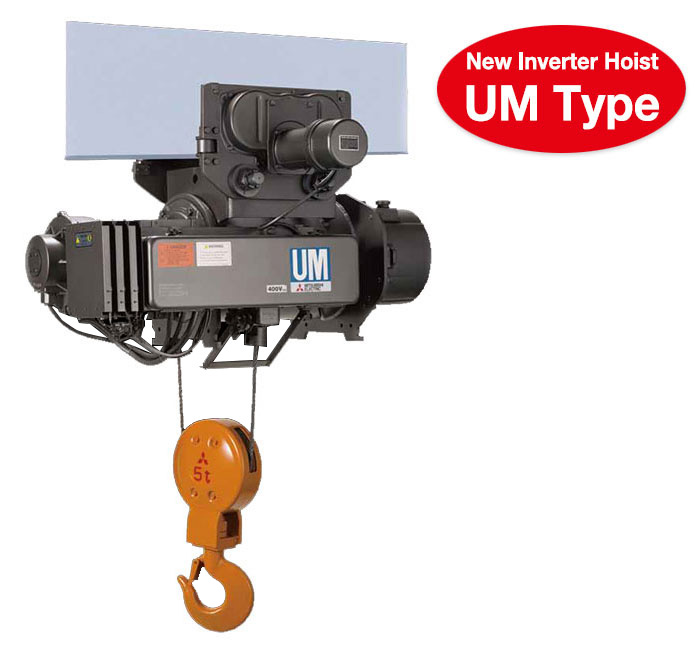

** Photo is an optional wearing product. Please refer for the optional details separately.

UM Type Series Specifications

Capacity(t)				5		10
Lift(m)				12
Wire rope	2falls (2/1)			12.5		-
	4falls (4/1)			-		12.5
	Rope specification			MITSUBISHI original wire rope
Hoisting*1	Speed(m/min)			0.6/6(9)		0.3/3(4.5)
	Motor	Out put (kW)		6.0
Traversing*2	Traversing type			Monorail type	Double rail type	Monorail type	Double rail type
	Speed(m/min)			21		12	15
	Motor		Out put (kW)	0.5		0.85	0.85
Rating (FEM 9.683)				Hoisting:40%ED 240S/Hr (100% of load rating) Traversing:25%ED 150S/Hr (100% of load rating)
Hoist class (ISO 4301-1 )				M5
Operation*3				Push button Monorail type, Double rail type: 8 Points (ON, OFF, U, D, E, W, S, N) Suspended type, Frame mounted type: 4 Points (ON, OFF, U, D)
Power supply system				Cable feeding, trolley feeding
Ambient air temperature				-1O°C ∼ +40°C (Non condensing)
Ambient air humidity				90% or less (Non condensing)
Enclosure				Simplified out door type (JIS C 0920 Equivalent to IP-44)
Color coating				Main body: Metallic gray (Equivalent to Munsell N4.0) Hook block: Munsell 7.5YR 7/14 Push button: Equivalent to Munsell 7.5 YR7/13
Options				Guide roller/Limit switch for traversing

*1 : ( ) = Light load speed
*2 : Contactor operation
*3 : "U" and "D" are 2step push button

Function code

Example

Type

Capacity

Lift

Shape &
Traverse type

Special &
specifications

M	Monorail
K	Suspended type
s	Frame mounted
R	Double rail

H	With hoisting inverter
