ผลิตภัณฑ์รอกโซ่ไฟฟ้า

FEATURES OF YHT SERIES:

  • Specially engineered frame combines hoist and trolley, for specific low headroom applications.
  • Reduced headroom provides higher lifting.

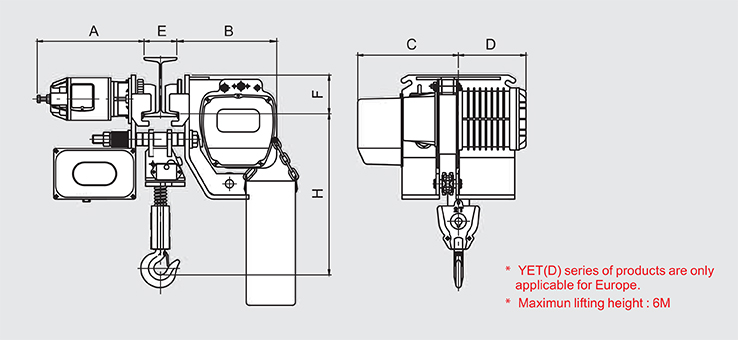

Model Capacity
(ton)		 Dimension (mm) Hoisting Traversing
H A B C D E F Speed(m/min) Motor
kw pole		 Speed(m/min) Motor
kw pole
50Hz 60Hz 50Hz 60Hz
YHT-050 0.5 440 327 307 278 241 75-125 112 9.2 11 1.8, 4P 20 24 0.25, 4P
YHTD-050 286 9.2/3.1 11/3.7 1.8/0.6, 4/12P 20/7 24/8 0.25/0.08, 4/12P
YHT-100 1 440 327 307 278 241 75-125 112 6.7 8.0 1.8, 4P 20 24 0.25, 4P
YHTD-100 286 6.7/2.2 8.0/2.7 1.8/0.6, 4/12P 20/7 24/8 0.25/0.08, 4/12P
YHT-200 2 520 330 310 311 208 100-150 118 3.3 4.0 1.8, 4P 20 24 0.25, 4P
YHTD-200 253 3.3/1.1 4.0/1.3 1.8/0.6, 4/12P 20/7 24/8 0.25/0.08, 4/12P
YHT-300 3 593 335 315 343 176 125-175 143 2.2 2.6 1.8, 4P 20 24 0.6, 4P
YHTD-300 221 2.2/0.7 2.6/0.9 1.8/0.6, 4/12P 20/7 24/8 0.6/0.2, 4/12P
