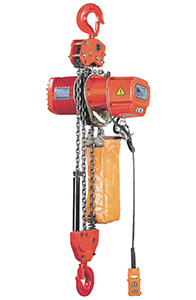

ผลิตภัณฑ์รอกโซ่ไฟฟ้า

FEATURES OF YSL SERIES:

  • Pendant control voltage transformed into 24V/48V to eliminate possible accident caused by circuit short and assure safe operation in wet environments.
  • Automatic motor brake system features simultaneous
    braking upon power failure or switching off.
  • Dual brake system assures safe operation.
SPECIFICATIONS :
Capacity (ton) 0.5 1 2 3
Lift Height (m) 3(6) etc.
Load Chain (mm) ø7.1
Single Speed (m/min) 50 Hz 6.7 4.7 2.3 1.5
60 Hz 8.0 5.6 2.8 1.8
Dual Speed (m/min) 50 Hz (6.7/2.2) (4.7/1.6) 2.3/0.8 1.5/0.5
60 Hz (8.0/2.7) (5.6/1.8) 2.8/1.0 1.8/0.6
Motor Power (kw) 1.5 (1.8) 1.8
Motor Power (kw) 1.8 / 0.6
Power Supply 3 Phase, 220V- 600V
E.D. Rating (%) 40
Load Chain Fall Number 1 2 3
N.W./G.W. (kg) 50.5/53 61/64 73/96
Packing LXWXH (cm) 60X57X33 62X52X50
Msrmnt (Cu.ft) 4 5.7
* Dual speed E.D. Rating = 40/20%
  Dimesions of hoist with motorized trolley
Capacity
(ton)
Model Dimensions (mm)
H A B C D E
YSL,H,E
YSF
0.5,1 MT-050, 100 705 328 173 294 98 75-125
2 MT-200 935 328 173 322 111 100-150
YSL, H 3 MT-300 1030 368 180 356 117 125-175
  Dimensions of Hoist with GT/PT
Capacity
(ton)
Model Dimensions (mm) Flange Width
(mm)
H A B C D1 D2 E G
YSL,H,
YSE,F
0.5 GT-050 710 194 156 110 151 150 266 2709 50-150
0.5 PT-050 710 194 110 110 151 - 220 - 50-150
1 GT-100 720 217 160 113.5 170 167 273 2719 75-150
1 PT-100 720 217 113.5 113.5 167 - 227 - 75-150
2 GT-200 920 247 179 130 224 207 309 3279 100-175
2 PT-200 920 247 130 130 207 - 260 - 100-175
YSL,H 3 GT-300 1110 270 196 150 241 239 346 3353 100-200
3 PT-300 1110 270 150 150 239 - 300 - 100-200
