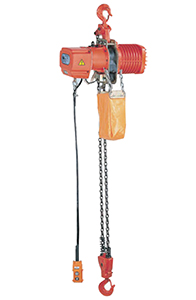

หน้าแรกผลิตภัณฑ์รอก รอกโซ่ไฟฟ้า BlackBear YSF

ผลิตภัณฑ์รอกโซ่ไฟฟ้า

FEATURES OF YSF SERIES:

  • Pendant control voltage transformed into 24V/48V to eliminate possible accident caused by circuit short and assure safe operation in wet environments.
  • Automatic motor brake system features simultaneous
    braking upon power failure or switching off.
  • Dual brake system assures safe operation.
SPECIFICATIONS :
Capacity (ton) 0.5 1 2 0.5 1 2
Lift Height (m) 3(6) etc.
Load Chain (mm) ø7.1 ø7.1
Single Speed (m/min) 50 Hz 5.6 3.9 2.0 6.7 4.7 2.3
60 Hz 6.7 4.7 2.3 8.0 5.6 2.8
Motor Power (kw) 1.8 1.8
Power Supply Single Phase
110V, 115V		 Single Phase
220V, 230V
E.D. Rating (%) 15 15
Load Chain Fall Number 1 2 1 2
N.W./G.W. (kg) 55/58.5 64.5/67 55/58.5 65/67
Packing LXWXH (cm) 60X57X33
Msrmnt (Cu.ft) 4
* Dual speed E.D. Rating = 40/20%
  Dimesions of hoist with motorized trolley
Capacity
(ton)		 Model Dimensions (mm)
H A B C D E
YSL,H,E
YSF		 0.5,1 MT-050, 100 705 328 173 294 98 75-125
2 MT-200 935 328 173 322 111 100-150
  Dimensions of Hoist with GT/PT
Capacity
(ton)		 Model Dimensions (mm) Flange Width
(mm)
H A B C D1 D2 E G
YSL,H,
YSE,F		 0.5 GT-050 710 194 156 110 151 150 266 2709 50-150
0.5 PT-050 710 194 110 110 151 - 220 - 50-150
1 GT-100 720 217 160 113.5 170 167 273 2719 75-150
1 PT-100 720 217 113.5 113.5 167 - 227 - 75-150
2 GT-200 920 247 179 130 224 207 309 3279 100-175
2 PT-200 920 247 130 130 207 - 260 - 100-175
