ผลิตภัณฑ์รอกโซ่ไฟฟ้า

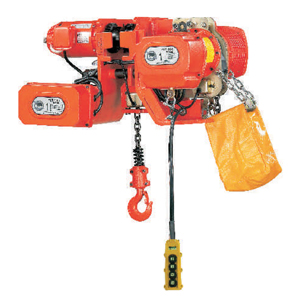

FEATURES OF YLT SERIES:

  • Specially engineered frame combines hoist and trolley, for specific low headroom applications.
  • Reduced headroom provides higher lifting.
Model Capacity
(ton)		 Dimension (mm) Hoisting Traversing
H A B C D E F Speed(m/min) Motor
kw pole		 Speed(m/min) Motor
kw pole
50Hz 60Hz 50Hz 60Hz
YLT-050 0.5 440 327 307 278 241 75-125 112 6.7 8.0 1.5, 4P 20 24 0.25, 4P
YLTD-050 286 6.7/2.2 8.0/2.7 1.8/0.6, 4/12P 20/7 24/8 0.25/0.08, 4/12P
YLT-100 1 440 327 307 278 241 75-125 112 4.7 5.6 1.5, 4P 20 24 0.25, 4P
YLTD-100 286 4.7/1.6 5.6/1.8 1.8/0.6, 4/12P 20/7 24/8 0.25/0.08, 4/12P
YLT-200 2 520 330 310 311 208 100-150 118 2.3 2.8 1.8, 4P 20 24 0.25, 4P
YLTD-200 253 2.3/0.8 2.8/1.0 1.8/0.6, 4/12P 20/7 24/8 0.25/0.08, 4/12P
YLT-300 3 593 335 315 343 176 125-175 143 1.5 1.8 1.8, 4P 20 24 0.6, 4P
YLTD-300 221 1.5/0.5 1.8/0.6 1.8/0.6, 4/12P 20/7 24/8 0.6/0.2, 4/12P
