ผลิตภัณฑ์รอกสลิงไฟฟ้า

M Type Series 5t,10t

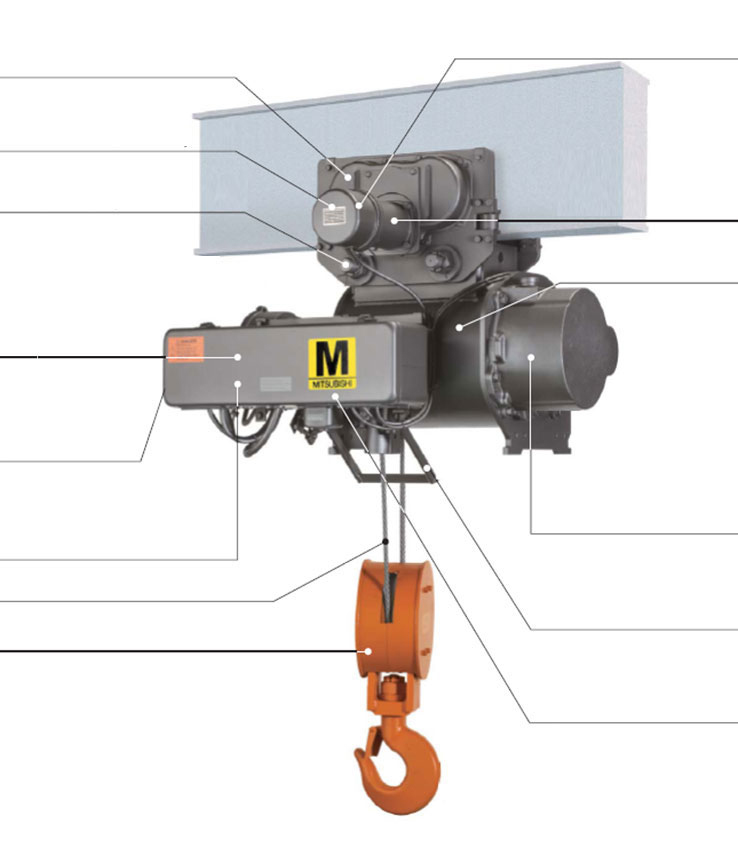

Traversing wheel with flange

(Only for flat rail)

Traverse brake

Disk type DC brake The brake torque
can be adjusted.

Tie Bolts

Secured by a grooved nut and split pin.

Applicable raill size

Box Rail : width 300  ∼ 350mm

Control box

The cover can be opened and closed by one-touch operation.

Electromagnet

Disk brake with an auto
adjustment device

Hoist Motor

High-resistance squirrel-cage motor with Class F insulation and ball bearings in heatproof grease.

Mitsubishi original wire rope

Hook block

Hook with an all-surface cover and a hook latch

Traverse deceleration section

Grease lubrication, simple 2-step deceleration, and totally enclosed structure.

Traverse Motor

Squirrel-cago type with Class B insulation.

Drum Casing

Built of rugged steel plate

Hoisting deceleration section

Grease lubrication, simple 2-step deceleration

Hoisting limit switch

2-step hoisting limit switch (Avoid using this switch for regular use.)

Additional hoisting deceleration section

(Inside of drum) Grease lubrication,
simple 1-step deceleration
Options
Over loading alarm
Guide roller
Traversing limit switch

* Photo is an optional wearing product. Please refer for the optional details separately.

M Type has been designed for optimizing price and performance.

Specifications



Type

Capacity (t)

Lift (m)

Wire rope

Hoisting





Monorail type

Double rail type
Low head type

Rope specification

Speed
m/s
(m/min)

Motor

Output
(kW)


Rated
Current
(A)



Poles

Low

High

2 falls (2/1)



4 falls (4/1)

50
Hz

50
Hz

50
Hz



M

5



-
*1

12

12.5

-

Mitsubishi original wire rope *2

5

5.0



4

10

-

12.5

2.5

5.0



Traversing

Mono-rail • Low hearoom

Double-rail

Speed
m/s
(m/min)

Motor

Speed
m/s
(m/min)

Motor

Output
(kW)

Rated
Current
(A)

Poles

Output
(kW)

Rated
Current
(A)

Poles

50
Hz

50
Hz

50
Hz

50
Hz

50
Hz

50
Hz

21

0.5



4

21

0.5



4



   12



0.85



21

0.75
X
2


* 1 Low lift models are not available
* 2 Using non genuine wire ropes causes low safety factor has an increased risk of short product cycle

Standard Specifications

  • Power supply
    • 3-phase 380V 50Hz control 48V (24V is also available)
  • Operating method Push button switch operations.


    5t ∼ 10t

    Suspended type
    Frame mounted type

    4 Points

    ON OFF U D

    Motor operated traversing hoist

    8 Points

    ON OFF U D E W S N
  • Rating
    *** Hoisting: 40%ED(100% of load rating), 240S/Hr (FEM 9.683),*only 50Hz Traversing : 25%ED (100% of load rating), 150S/Hr *only 50Hz
  • Power supply system
    *** Cable feeding, trolley feeding
  • Enclosure
    ***Simplified out door type(JIS C 9620 Equivalent to IP-44)
  • Applicable standard
    *** JIS C 9620 electric hoist/crane structure standard, FEM 9.683
  • Hoist class (ISO 4301-1)
    M5
  • Color coating
    Main body: Metallic gray (Eqivarent to Munsell N4.0)
    Hook block: Munsell 7.5YR 7/14
    Push button: Equivarent to Munsell 7.5YR 7/13
  • Ambient air temperature
    *** - 10°C  ∼ 40°C (Non congelation)
  • Ambient air humidity
    *** 90% or less (Non condensing)

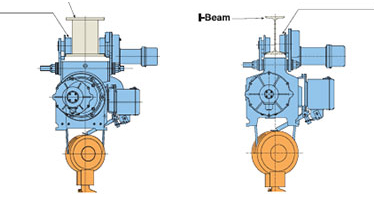

Traversing wheel and Applicable rail


(M Type) (R Type, S Type)


Box Rail







Traversing wheel
• Only for flat rail
• With flange

 Traversing wheel
•Only for I-Beam
•With flange: R Type,
S Type (More than 5t)
•Without flange : S Type(1/2 ∼ 2.8t)

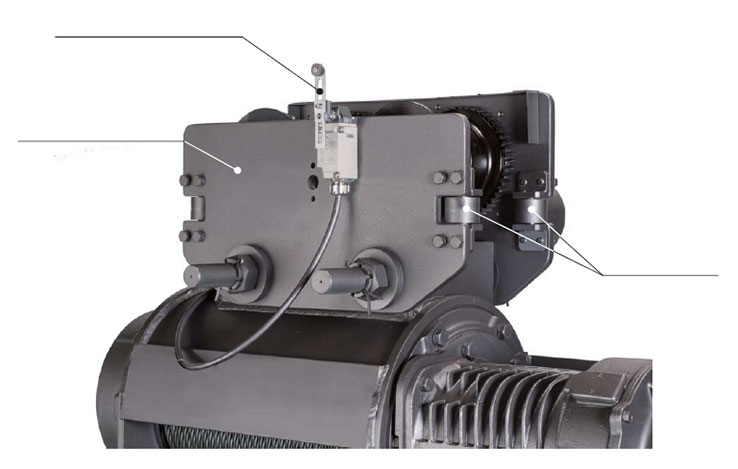

Options (Photo : M-5-HM)

Traversing limit switch
Traversing side plate (motorless side)
Guide roller

Option

Summary

Guide roller

Bolt installation is available
(M Type has Lug holes)

Correspondence to a wide rail

Attachment : 350mm  ∼ 400mm

Over loading alarm(OLA)

Standard S Type's alarm is available

Traversing limit switch

Bolt installation is available
(M Type does not have Lug hole)
