Traverse brake
Disc type voltage drive DC brake
The brake torque can be adjusted.
Tie Bolts
Secured by a grooved nut and split pin.
Control box
Cover secured by a catchclip fastener for easy opening.
DC Electromagnet
Designed for easy maintenance and long service life.
Cable for push button switch
Vibration-proof cable
(With a built-in protective wire)
Electromagnetic brake
Disc brake with an auto adjustment device.
Push button switch
Plastic case
HoistING Motor
High-resistance squirrel cago type induction motor, class F insulation
The ball bearing contains heat-resisting grease.
Wire rope
Parallel stranded rope is used. The rope end is clamped by pressure welding.
Traverse deceleration section
Grease lubrication, simple 2-step deceleration, and closed gear box.
Traversing Motor
Squirrel cago type induction motor class B insulation.
Hoisting deceleration section
Grease lubrication, simple 2-step deceleration.
Drum Casing
Built of rugged steel plate.
Hoisting limit switch
2-step hoisting limit switch (Avoid using this switch for regular use.)
Hook block
Hook with an all-surface cover and a hook latch.

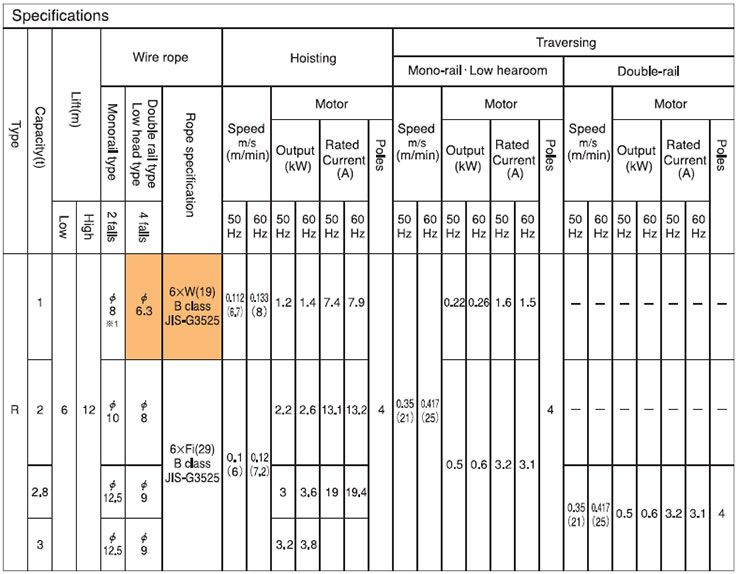

1 Rope specification of 1t 2falls is 6XFi(29)
Note 1:High lift models (Low-head type1 ∼ 2.8t,Double rail type2.8t) are not available.
