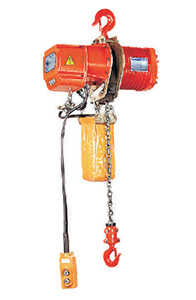

HomeProductsHoists Electric Chain Hoist BlackBear YSE

ProductsElectric Chain Hoist

FEATURES OF YSE SERIES:

  • Direct connection to power supply.
  • Slipping clutch provides
    overload protection.
  • No limit switch nor limit spring,
    reduces headroom.
  • Optional low voltage, 24 volt,
    control available.
SPECIFICATIONS :
Capacity ( ton ) 0.5 1 2
Lift Length ( m ) 3 (6) etc.
Single Speed ( m/min ) 50Hz 6.7 4.7 2.3
60Hz 8.0 5.6 2.8
Motor Power ( kw ) 1.5 1.8
Power Supply 3 Phase,
220V-600V,50Hz,60Hz
E.D Rating ( % ) 40
Load Chain Fall Number 1 2
N.W./G.W. (kg) 50.5/53 60.5/63
Packing LXWXH (cm) 60X57X33
Msrmnt (cu, ft) 4
  Dimesions of hoist with motorized trolley
Capacity
(ton)		 Model Dimensions (mm)
H A B C D E
YSL,H,E
YSF		 0.5,1 MT-050, 100 705 328 173 294 98 75-125
2 MT-200 935 328 173 322 111 100-150
  Dimensions of Hoist with GT/PT
Capacity
(ton)		 Model Dimensions (mm) Flange Width
(mm)
H A B C D1 D2 E G
YSL,H,
YSE,F		 0.5 GT-050 710 194 156 110 151 150 266 2709 50-150
0.5 PT-050 710 194 110 110 151 - 220 - 50-150
1 GT-100 720 217 160 113.5 170 167 273 2719 75-150
1 PT-100 720 217 113.5 113.5 167 - 227 - 75-150
2 GT-200 920 247 179 130 224 207 309 3279 100-175
2 PT-200 920 247 130 130 207 - 260 - 100-175
